RIBBON BLENDER MANUFACTURER

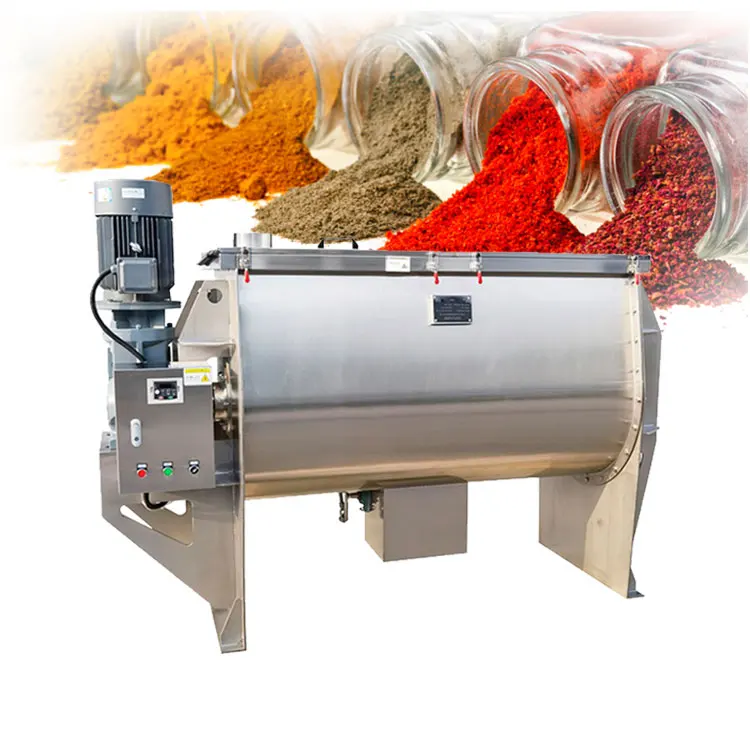

Ribbon Blender

ribbon blender


ribbon blender


One of the leading Manufacturer and suppliers for the most sturdy and efficient Ribbon blenders .



We supply from lab model to heavy duty models of Ribbon blenders. Our Ribbon Blenders find its application for blending of dry powders in chemicals, dyes, pharmaceuticals, food, spices, Ayurveda, minerals, pesticides, etc.



Ribbon Blender is suited for solids blending where the material is less than free flowing. They are available in the customary U-Shaped trough with a variety of agitator arrangements.



We offer sanitary design as well as heavy-duty versions utilizing heavier walls and oversized shafts and bearings for especially dense materials.



Operating Principle



The rotation of the ribbon flights near the vessel wall cause the material to move towards the centre of the mixing vessel. The rotation of the inner flights directs the material in the opposite direction towards the vessel walls. The counter current, axial flow of materials, combined with the radial flow due to the action of inner and outer ribbon flights results in homogenous blending of the process material.



Capacity: Ribbon blenders can be manufactured in a wide range of capacities. Blenders upto 10 m3 are common. The blender capacities can be as high to 50 m3.



Optional Features

The ribbon blender may be provided with an external jacket for heating or cooling the contents of the mixing vessel.

The ribbon blender can be provided with liquid spray arrangement for coating the powder materials.



Advantages

  • Easy loading and unloading of material.
  • Easy to operate and maintain.
  • Homogenous blending with low power consumption.


Capacity


Model No. Total Capacity Working Capacity Motor rating (Hp) Container Dimensions (mm)
Liter Liter Light Medium Length (L) Width (W) HeigHt (H)
RB-5 6.5 5 - 0.5 300 150 180
RB-10 15 12 - 0.5 400 200 235
RB-25 30 25 - 1 500 250 300
RB-50 85 65 - 1 700 350 405
RB-75 100 80 1 2 750 375 445
RB-100 130 100 1 2 800 400 480
RB-200 260 190 2 3 1000 500 600
RB-300 450 340 4 5 1200 600 710
RB-400 580 430 5 7.5 1300 650 770
RB-500 730 530 5 7.5 1400 700 830
RB-750 1100 800 7.5 10 1600 800 950
RB-1000 1500 1145 10 12.5 1800 900 1060
RB-1250 1800 1340 12.5 15 1900 950 1130
RB-1500 2080 1570 15 20 2000 1000 1190
RB-2000 2790 2090 20 25 2200 1100 1310
RB-3000 4090 3060 30 40 2500 1250 1490
RB-5000 7050 5300 40 50 3000 1500 1780
RB-7500 10100 7700 50 60 3400 1700 2025
RB-10000 14000 10750 60 75 3800 1900 2250

Industries served

Ribbon blender are commonly used for blending large volumes of free flowing, dry, solids materials in the food, pharmaceutical, cosmetic and chemical industries.

The blender is capable of handling small quantities of liquids, used for coating or wetting of powders. The following are some of the applications of ribbon blender:

Applications

Animal feed Carbon graphite powder Dry cement
Dry electrode powder Epoxy resin Gelatins
Grains Heavy metal ore Herbicides
Insecticides Light paste material Medicated feeds
Mica milk powders Organic pigment Pesticides
