variable speed Dissolver is a highly versatile machine for the production of paints, inks, coatings, construction chemicals etc . The main function of this machine is for breaking up of the aglomerates , wetting & dispersing of pigments in liquids. Due to the variable speed control the speed of the shaft can be varied at different stages of the mixing process thus saving power. Another advantage is in the hydraulic lifting and lowering arrangement wherein the height of the mixing shaft can be adjusted so as to obtain a uniform product circulation & perfect dispersion. A wide range of paints & inks can be produced on our dissolvers without the use of grinding media. Mixing vessels of different capacities with heating, cooling & vacuum arrangements are also available.
The process of dispersion is carried out by the centrally located shaft having Saw tooth impeller & running at high speed (1000 to 1400 RPM). Reckoned for trouble-free operations, the equipment made available in this range is extensively used for manufacturing plastic emulsions, solvent based Paints and eco-friendly water based paints.
High-speed Disperser is to dissolve, disperse and mix materials with different viscosity. Through the very high peripheral tip speed of the toothed disc, the strong shearing, crashing and friction forces generated between the materials and toothed disc disperse, dissolve and mix the materials efficiently. The large stress forces break down the agglomerates into the liquid or paste suspension.

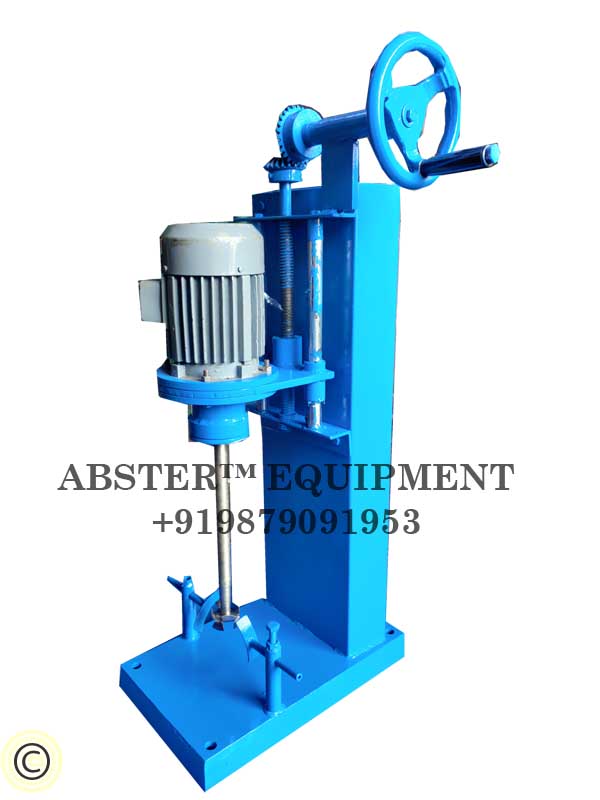

High-Speed Disperser with Clamping
Features :
- Optimum Process Selection of Mixer for Motor Power at given Tip Speed
- Solid shafts for strength and ease of handling for HSD
- Excellent Shaft machining in order to Control the Shaft run-outs, vibration and noise
- Use of external bearing housing with back to back Tapper Roller bearing
- Rugged and Robust mounting structure for strength and durability
- Hydraulic Lifting System for HSD is Optionally available
- Epoxy Paint finish as Standard
MODEL |
MAIN MOTOR |
LIFTING MOTOR |
SPEED RANGE |
INTER CHANGEABLE DISC |
WEIGHT |
SHELL TOTAL CAPACITY |
ABFHSD 7.5 |
7.5 |
1 |
800-1500 |
150-200 |
600 |
250 |
ABFHSD 10 |
10 |
1 |
800-1500 |
150-200 |
600 |
250 |
ABFHSD 15 |
15 |
1 |
800-1500 |
15s0-200 |
625 |
375 |
ABFHSD 25 |
25 |
2 |
535-1500 |
250-285 |
1000 |
700 |
ABFHSD 30 |
30 |
2 |
535-1500 |
250-285 |
1100 |
800 |
ABFHSD 40 |
40 |
2 |
370-1200 |
325-390 |
1500 |
1000 |
ABFHSD 50 |
50 |
2 |
370-1200 |
325-390 |
1700 |
1250 |
High speed paint dispersing mixer, High speed disperser/dissolver,High Quality high speed disperser,high speed disperser, high speed disperser, high speed mixers suppliers, industrial mixers, mixing equipment, industrial mixing equipment, high speed dispersers
| Model | Motor HP (kW) | RC (Liter) < 4000 cps | RC (Liter) < 1500 cps | A | B | C | D | E | F | G | H | I | G+J | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ABF-05E | 1/2HP (0.37) | 1-4 | 2-5 | 720 | 500 | 170 | 150 | 430 | 500 | 30 | 100 | 22 | 250 | 60 |
| ABF-105E | 1HP (0.75) | 10-30 | 15-40 | 1300 | 1200 | 450 | 250 | 750 | 700 | 100 | 150 | 30 | 500 | 120 |
| ABF-205E | 2HP (1.5) | 30-80 | 50-120 | 1500 | 1300 | 600 | 300 | 1300 | 700 | 150 | 150 | 30 | 600 | 160 |
| ABF-305 | 3HP (2.2) | 80-150 | 100-200 | 1750 | 1600 | 750 | 500 | 1350 | 1000 | 200 | 200 | 45 | 1000 | 700 |
| ABF-505 | 5HP (3.7) | 100-200 | 150-300 | 1900 | 1600 | 750 | 500 | 1350 | 1000 | 200 | 230 | 50 | 1000 | 800 |
| ABF-755 | 7.5HP (5.5) | 200-350 | 300-500 | 1900 | 2200 | 1000 | 600 | 1580 | 1000 | 200 | 250 | 50 | 1250 | 1400 |
| ABF-1010 | 10HP (7.5) | 300-400 | 400-600 | 1900 | 2200 | 1000 | 600 | 1580 | 1000 | 200 | 280 | 60 | 1250 | 1500 |
| ABF-1510 | 15HP (11) | 400-600 | 500-800 | 1900 | 2200 | 1000 | 600 | 1580 | 1000 | 200 | 300 | 60 | 1300 | 1600 |
| ABF-2010 | 20HP (15) | 500-800 | 800-1200 | 1900 | 2200 | 1000 | 600 | 1580 | 1000 | 200 | 330 | 60 | 1300 | 1700 |
| ABF-2510 | 25HP (18.5) | 800- 1200 | 1000-1500 | 2100 | 2500 | 1250 | 700 | 1700 | 1100 | 250 | 350 | 60 | 1400 | 2000 |
