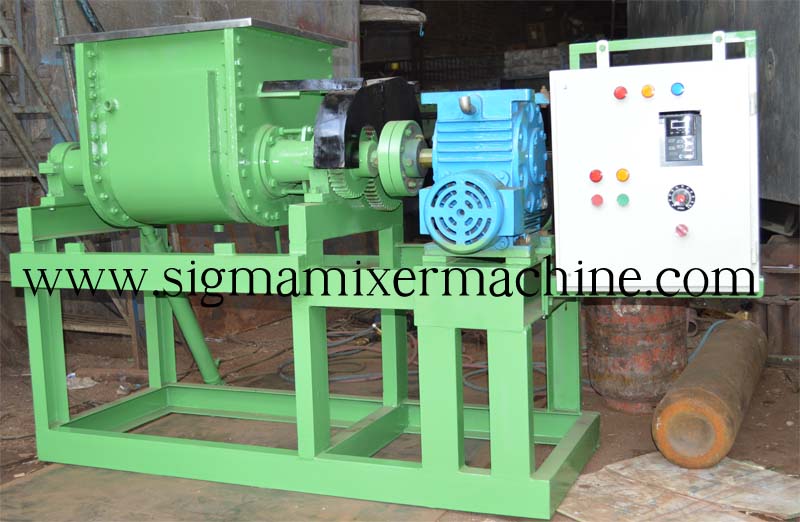

Bmc/dmc/smc Fiberglass Kneading Mixer

Dough Moulding compound mixer

Get Best Quote

Dough Moulding compound mixer

Sigma Double Arm Z Mixers are excellent for kneading and mixing of highly viscous materials like dough, putty, rubber solutions, adhesives, polymers etc. The mixing action is a combination of smearing, stretching, folding, dividing and recombining as the material is processed between the sigma blades and the container walls. Jacket arrangement is provided for heating or cooling application. In bigger models the container is tilted by a hydraulic cylinder to ensure complete discharge of mass.
The Sigma Double Arm Z Mixers is valued for high durability, superior performance, compact design, sturdy construction and longer service life.



The process of dispersion is carried out by the centrally located shaft having Saw tooth impeller & running at high speed (1000 to 1400 RPM). Reckoned for trouble-free operations, the equipment made available in this range is extensively used for manufacturing plastic emulsions, solvent based Paints and eco-friendly water based paints.



Features :

  • Optimum Process Selection of Mixer for Motor Power at given Tip Speed

  • Solid shafts for strength and ease of handling for HSD

  • Excellent Shaft machining in order to Control the Shaft run-outs, vibration and noise

  • Use of external bearing housing with back to back Tapper Roller bearing

  • Rugged and Robust mounting structure for strength and durability

  • Hydraulic Lifting System for HSD is Optionally available

  • Epoxy Paint finish as Standard



These machines are available in a wide range and diversity of disperser models drive powers from 10 to 50 HP to fulfil any application involving dispersion of small,medium and larger batches.



Models
ABFSK 6
ABFSK 25
ABFSK 50
ABFS 125
ABFSK 250
ABFSK 350
ABFSK 500
Vol. Cap in Lts.
6
25
50
125
250
350
500
Motor H.P.
1
3
5
10
20
30
40
Hydraulic H.P.




1.5
1.5
1.5
Tilting
Manual
Manual
Manual
Manual
Hydraulic
Hydraulic
Hydraulic
