Side Entry Agitator

side entry agitator

Get Best Quote

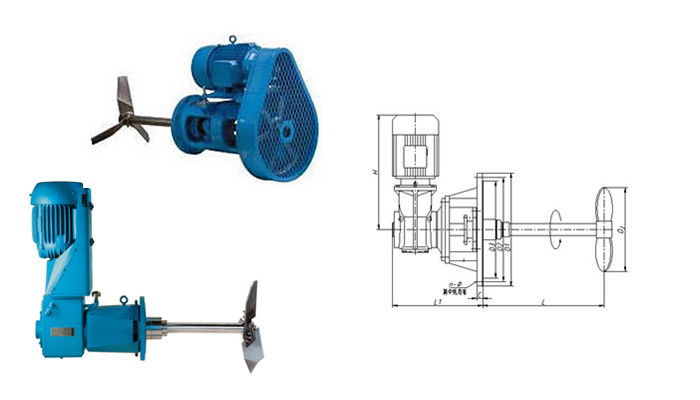

Agitators-Side entry agitator Description of side entry agitators Side entry agitator has the advantages such as compact structure, high efficiency, stable transmission, low noise and easy disassembly. the stirring device is installed on the side wall of cylinder or tank equipment. Usually adopted axial flow impeller. CD's side entry agitators are widely used in petrochemical, chemical, pharmaceutical, mineral, water treatment, pulp, coating, paint, paper, Flue Gas Desulfurization and so on. Side entry agitator is a new type of mixer device, we can replace or repair seal or gear box without emptying the fluid in the tank. Equipped with a spiral type impeller , can get the highest mixing effect. in the case of equal power consumption. For side entry agitator, the mixing device was installed on the side wall of tank, the impeller is usually used axial flow pattern, the type of TXL impeller was used more. in the same power consumption, can get the highest mixing effect, power consumption is only 1/3 ~ 2/3 of top entry agitator, the cost is only 1/4 ~ 1/3 of top entry agitator. Speed can catch 200 ~ 750r/min.





Features:
  • Need to install the sealing device,  generally use of mechanical seals.
  • the stirring device is installed on the side wall of cylinder or tank equipment,
  • Transmission shaft with special structure design,  can easily replace the mechanical seals and bearing in the case of non disassembly of the whole machine
  • high mechanical efficiency, compact structure, stable operation
Application:
  • Flue Gas Desulfurization
  • petrochemical,
  • pharmaceutical
  • Biofuels and bio refineries
  • Hydrometallurgy
  • water and wastewater
  • mineral

ss

Features :

  • Optimum Process Selection of Mixer for Motor Power at given Tip Speed

  • Solid shafts for strength and ease of handling for HSD

  • Excellent Shaft machining in order to Control the Shaft run-outs, vibration and noise

  • Use of external bearing housing with back to back Tapper Roller bearing

  • Rugged and Robust mounting structure for strength and durability

  • Hydraulic Lifting System for HSD is Optionally available

  • Epoxy Paint finish as Standard

These machines are available in a wide range and diversity of disperser models drive powers from 10 to 50 HP to fulfil any application involving dispersion of small,medium and larger batches.
MODEL
MAIN MOTOR
LIFTING MOTOR

SPEED RANGE

INTER
CHANGEABLE
DISC
WEIGHT
SHELL TOTAL
CAPACITY
ABFHSD 7.5
7.5
1
800-1500
150-200
600
250
ABFHSD 10
10
1
800-1500
150-200
600
250
ABFHSD 15
15
1
800-1500
15s0-200
625
375
ABFHSD 25
25
2
535-1500
250-285
1000
700
ABFHSD 30
30
2
535-1500
250-285
1100
800
ABFHSD 40
40
2
370-1200
325-390
1500
1000
ABFHSD 50
50
2
370-1200
325-390
1700
1250
